AI System
An integrated waterproofing system combining TurboSeal H, a high-adhesion, non-curing waterproofing gel made with recycled materials, with AI Sheet, a functional waterproofing membrane incorporating organic and inorganic coating layers.
A composite waterproofing system combining a high-adhesion, non-curing synthetic rubber-based waterproofing gel with a multi-layer waterproofing membrane incorporating organic and inorganic coating materials.
New Construction Technology No. 937
Patent 10-1780673
A composite waterproofing system combining a high-adhesion, non-curing synthetic rubber-based waterproofing gel with a multi-layer waterproofing membrane incorporating organic and inorganic coating materials.
New Construction Technology No. 937
Patent 10-1780673

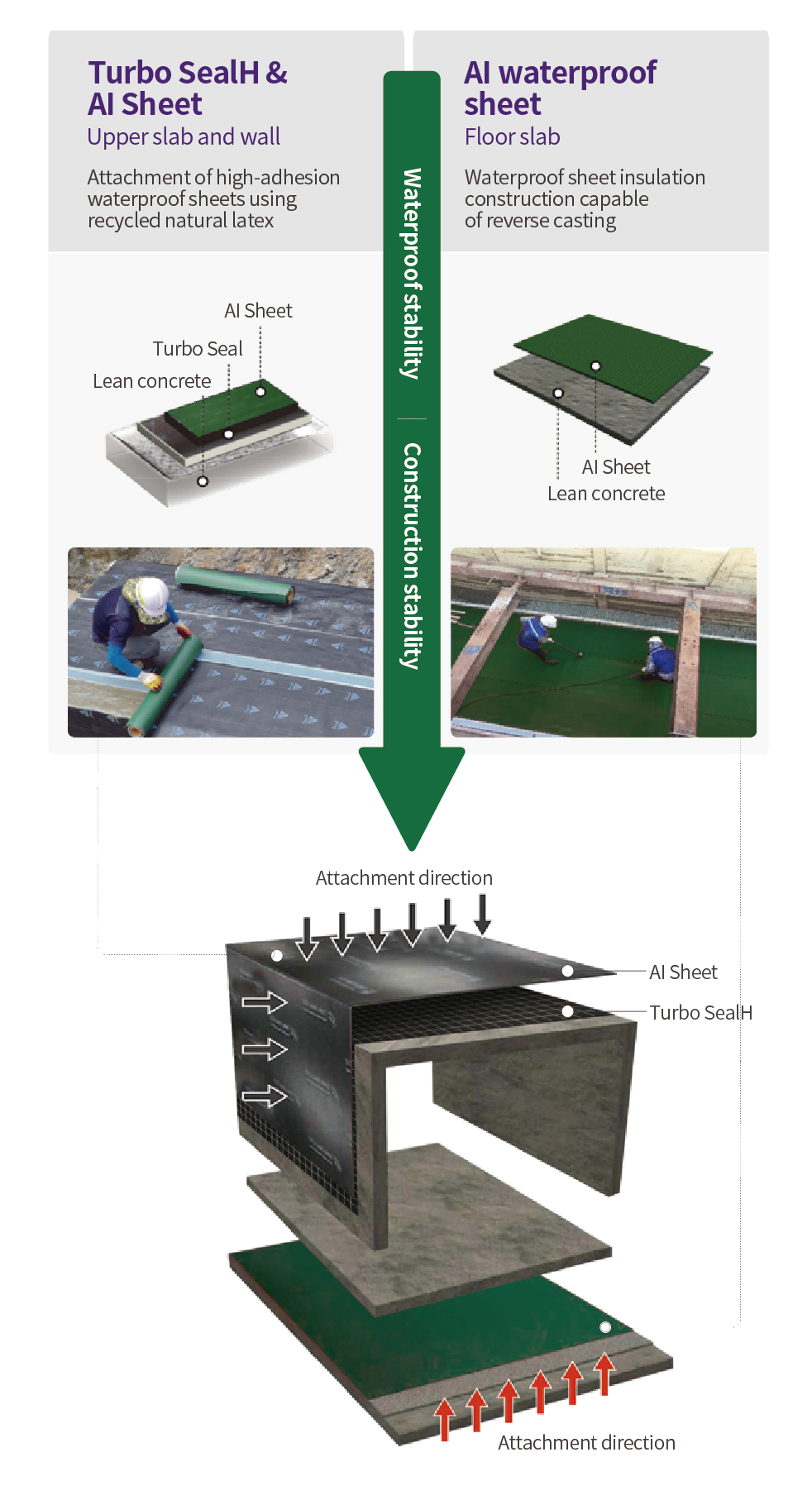

AI (All Integration)
An integrated waterproofing system designed to achieve continuous bonding between waterproofing components.
TurboSeal H
※ Product colors can be customized

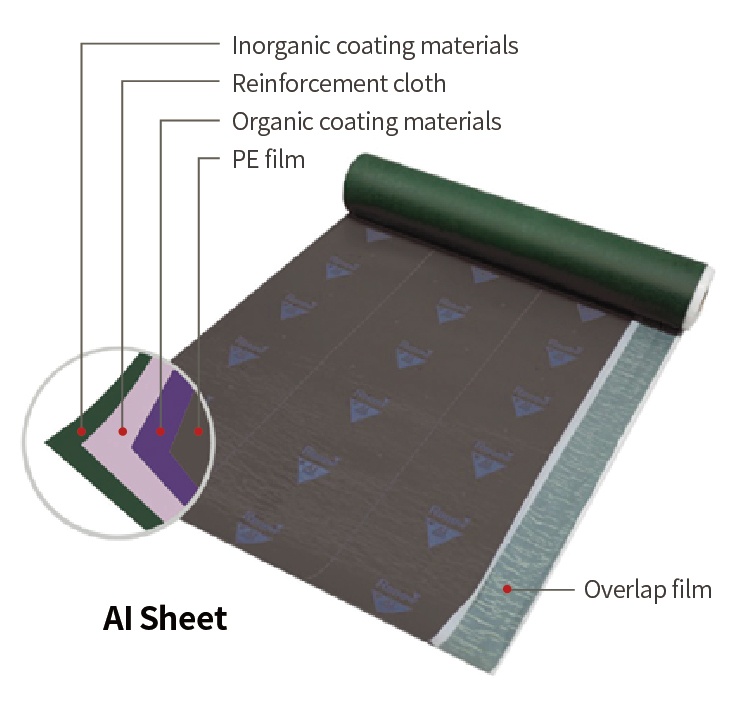

AI sheet
Building
STEP 1
TurboSeal H coating
STEP 2
Wall-Slab (AI Sheet Attached)
STEP 3
Construction completed
Construction detail drawing

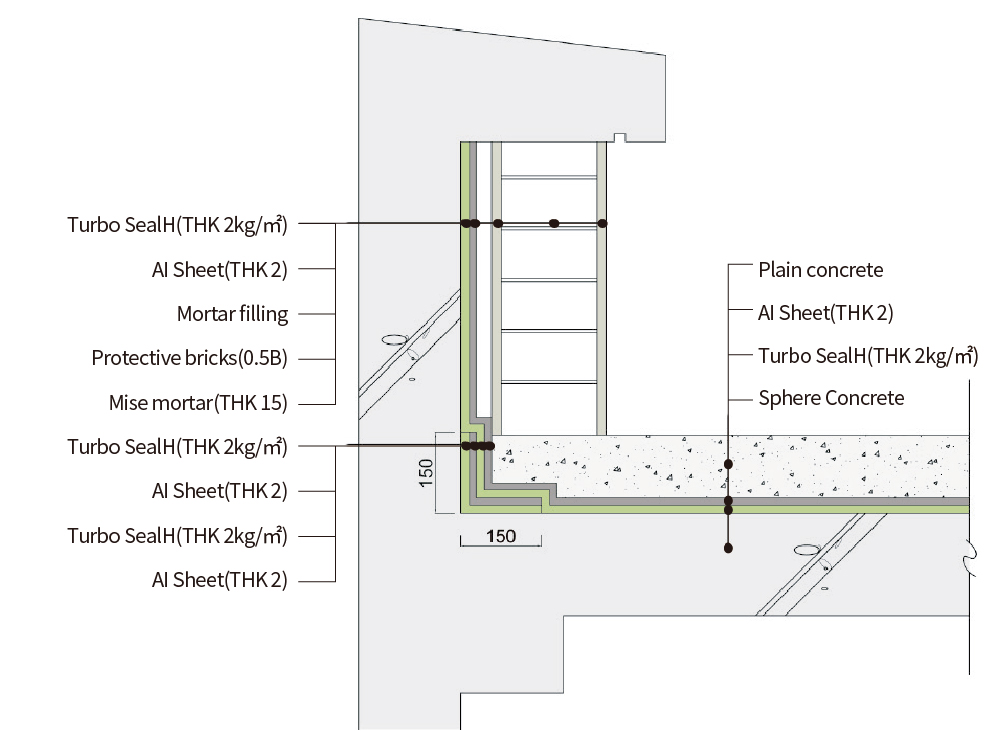

Rooftop corner detail drawing 1

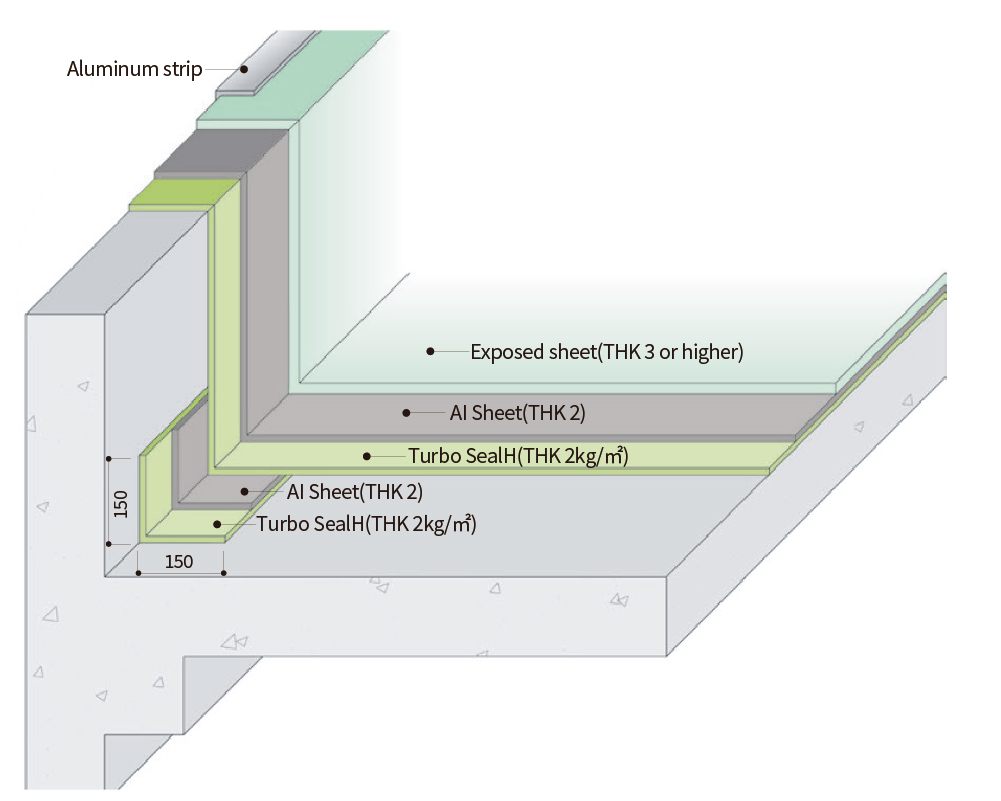

Rooftop corner detail drawing 2
Rooftop corner detail drawing (In cases without a waterproof barrier)

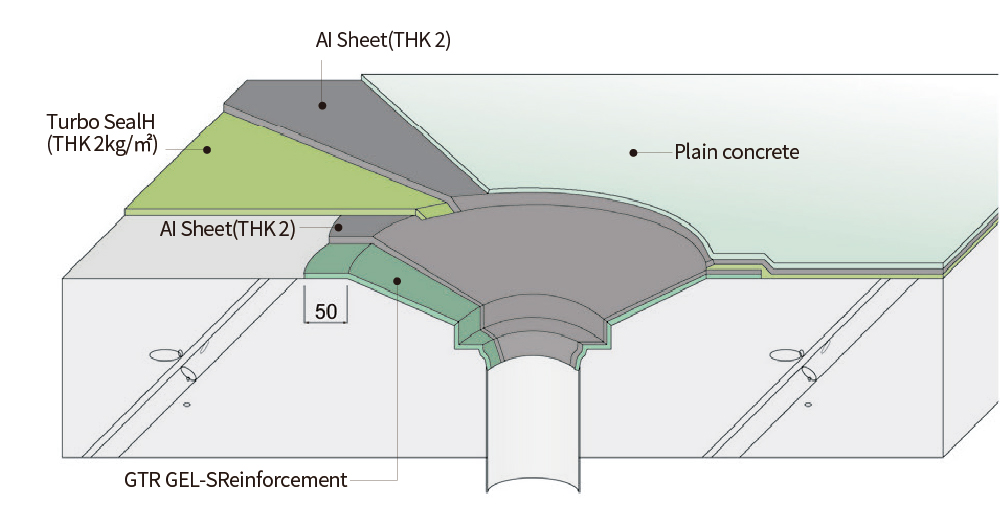

Drain detail
Civil engineering
STEP 1
Foundation bottom (AI sheet installation)
STEP 2
Wall-Slab (TurboSeal H Coating)
STEP 3
Wall-Slab (AI Sheet Attached)
STEP 4
Construction completed
Construction detail drawing

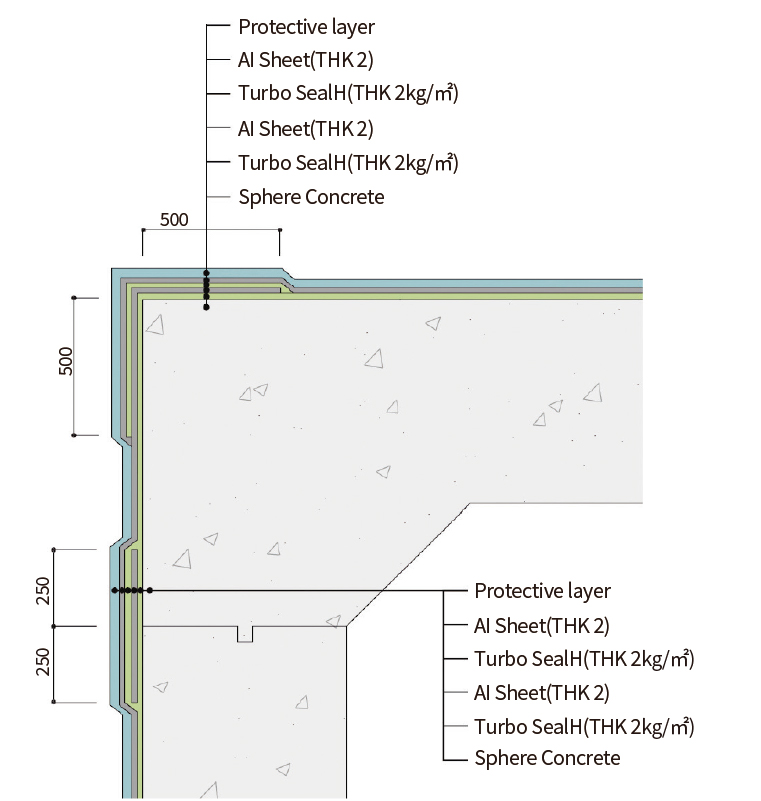

Wall - Slab area

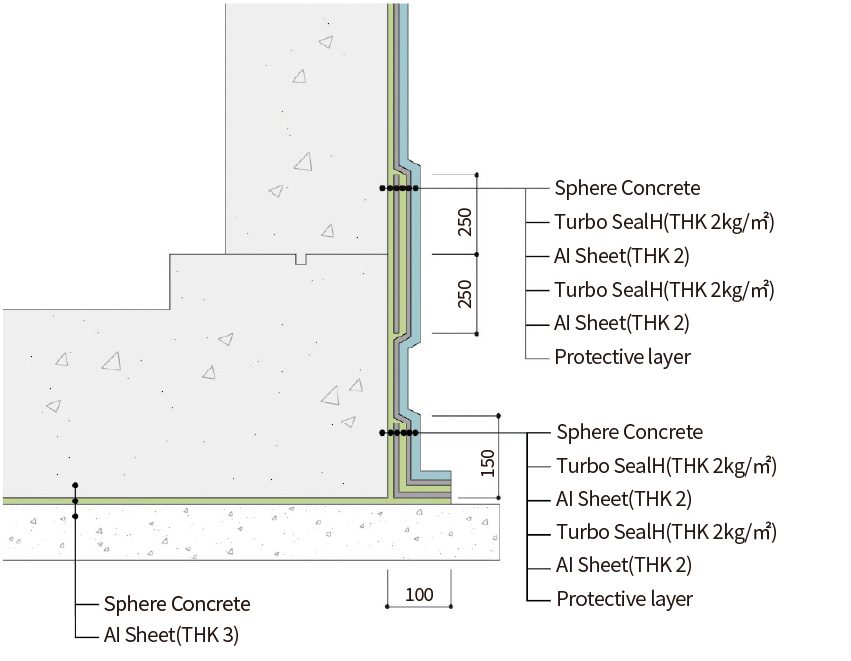

Foundation base - Wall area

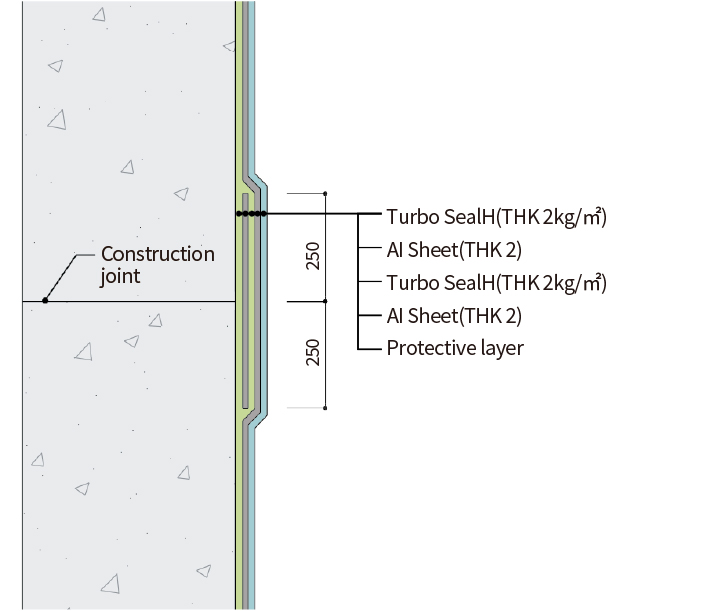

Construction joint area
※ The above construction drawings are subject to change depending on site conditions.
