Renew System Waterproof New Technology

Waterproofing Layer Restoration System
Leak Repair Technology for Underground Structures Using TurboSeal, a Synthetic Rubber-Based Polymer Gel

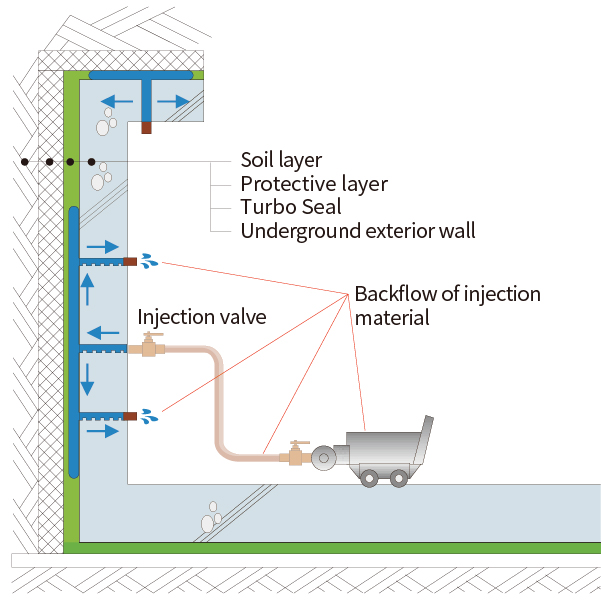

A waterproofing restoration method that injects flexible, high-adhesion TurboSeal behind the structure to restore the waterproofing layer where the existing system is damaged, deteriorated, or missing.

International ISO TR 16475
Ministry of Construction and Transportation New Technology No. 376
New Disaster Prevention Technology No. 44-2-1

A waterproofing restoration method that injects flexible, high-adhesion TurboSeal behind the structure to restore the waterproofing layer where the existing system is damaged, deteriorated, or missing.

International ISO TR 16475
Ministry of Construction and Transportation New Technology No. 376
New Disaster Prevention Technology No. 44-2-1

Features

  • Applicable even under active water leakage conditions
  • Waterproofing performance can be verified immediately after TurboSeal injection
  • No removal of the existing waterproofing layer required
  • Minimal noise and construction waste
  • Reduced maintenance requirements and costs

Applications
Applicable to concrete structures requiring leakage repair, including underground parking structures, tunnels, underpasses, metro structures, utility tunnels, power tunnels, communication tunnels, and other underground structures.

STEP 1
rm_01
Injection port perforation
STEP 2
rm_02
Turbo seal injection
STEP 3
rm_03
Check for backflow and close
The Big Dick in Boston, USA (Wall Leak Repair)
The Big Dick in Boston, USA (Wall Leak Repair)
STEP 1
rm_04
Scene of the site
STEP 2
rm_05
Injection port perforation
STEP 3
rm_06
Turbo seal injection
STEP 4
rm_07
Check for turbo seal backflow
Singapore Subway (Wall Leakage Repair) / Construction Area 6km
Singapore Subway (Wall Leakage Repair) / Construction Area 6km

Diaphragm wall design: Construction without a waterproofing layer resulted in full-surface leakage. TurboSeal was injected into the wall surface and C/J.

Before construction
After construction
Construction detail drawing
Rooftop of a building structure, upper slab of a parking lot
Rooftop of a building structure, upper slab of a parking lot

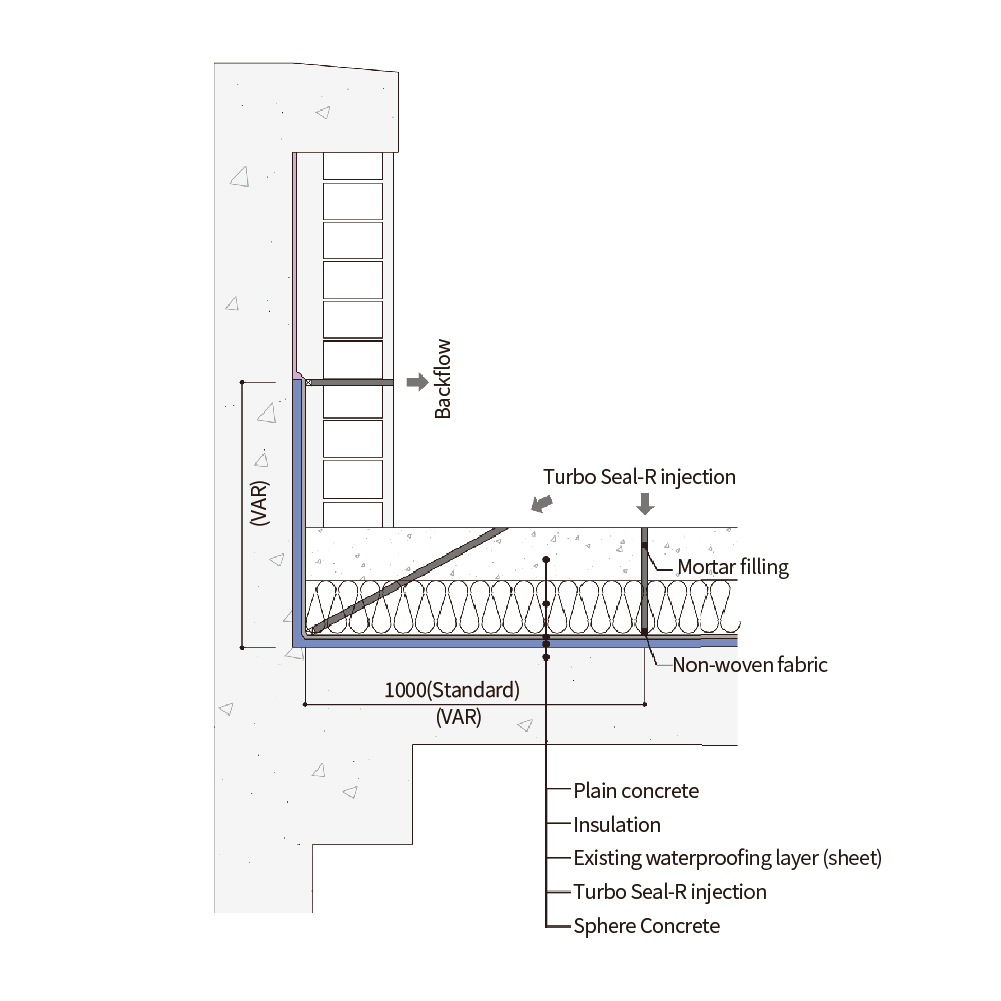

General rooftop (if there is an existing waterproofing layer)

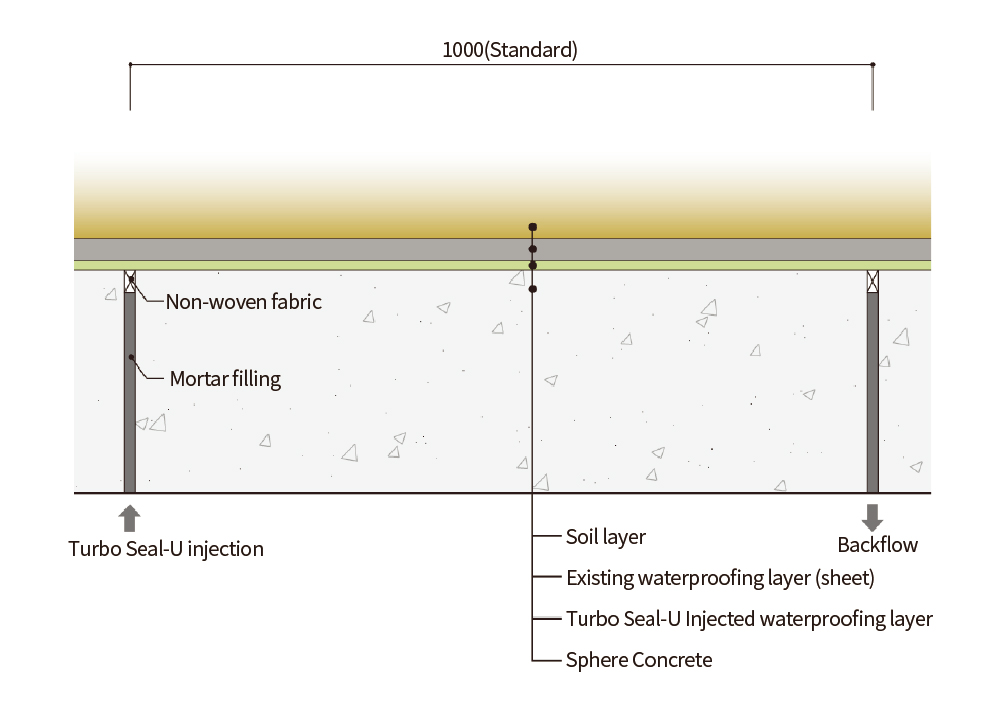

Upper slab (provided that if there is no waterproofing layer, it is constructed after filling with polyurethane)

Rooftop of a building structure, upper slab of a parking lot
Rooftop of a building structure, upper slab of a parking lot

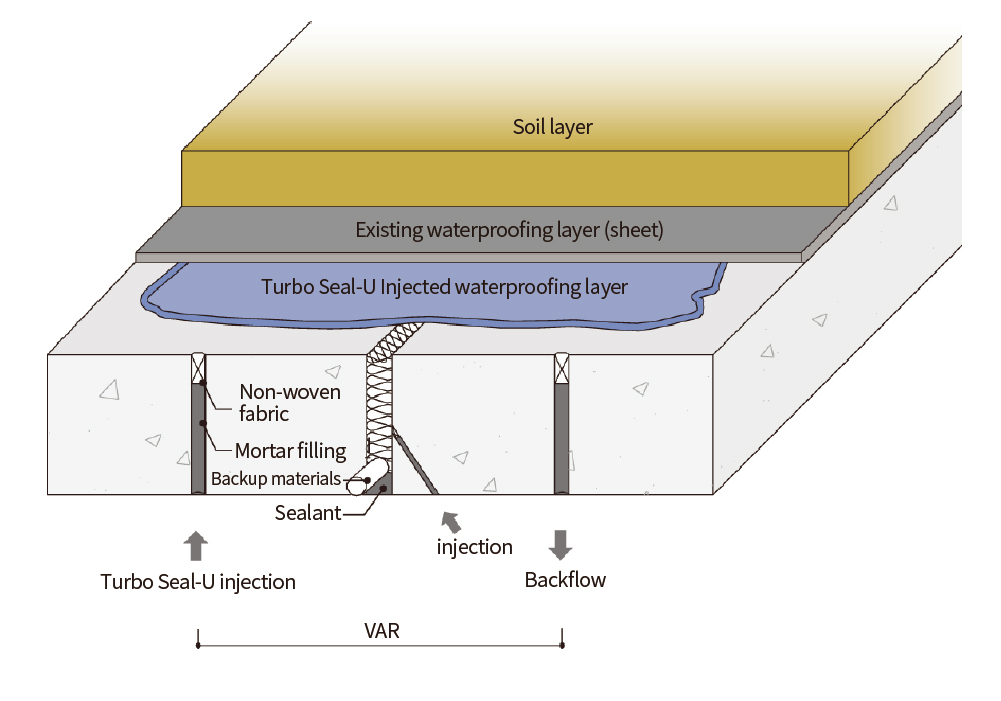

Expansion joint

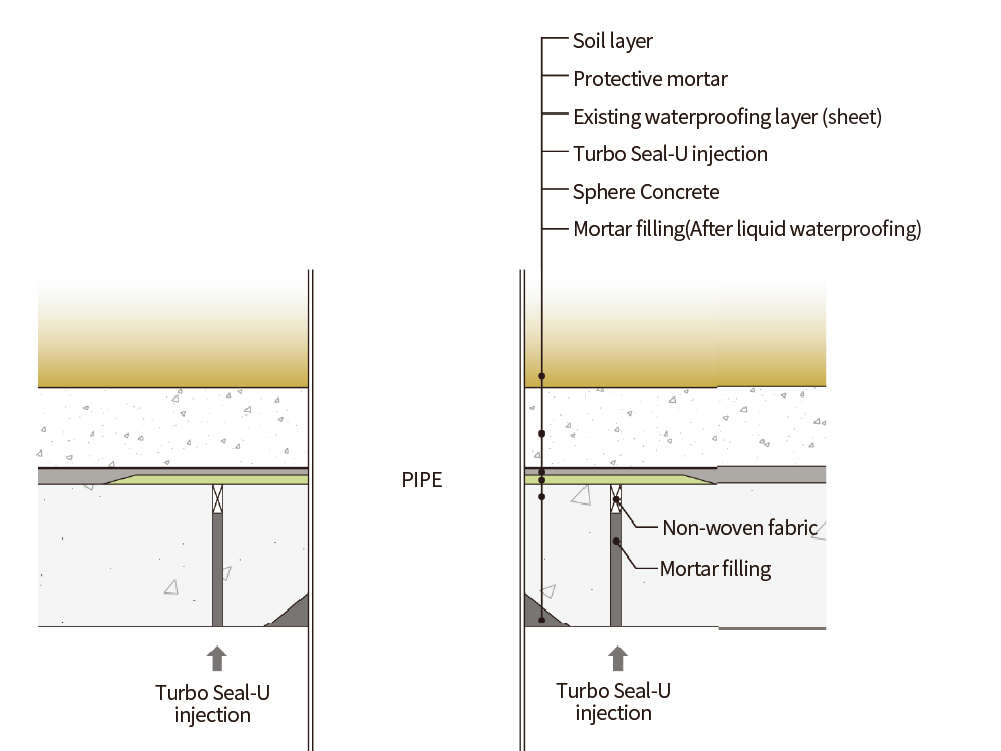

Penetrating pipe section

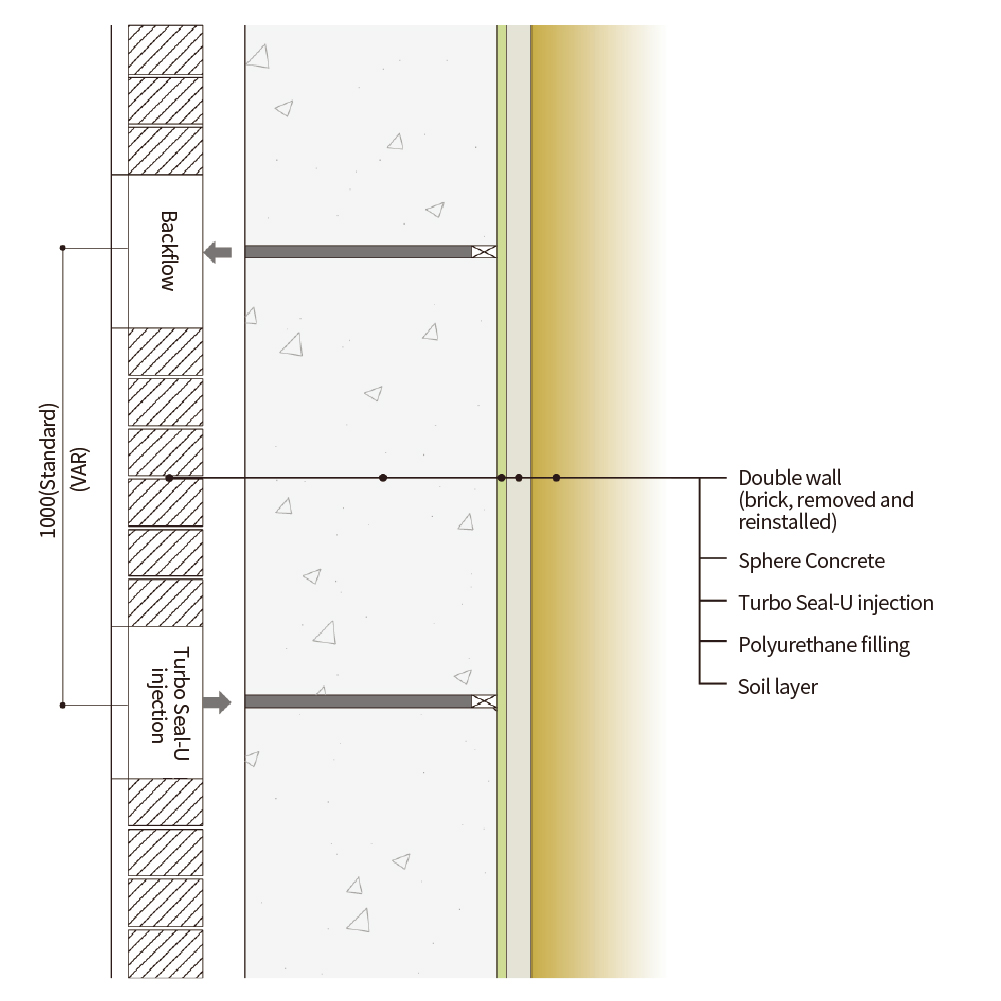

Wall area (in cases without a waterproofing layer)

※ The above construction drawings are subject to change depending on site conditions.
