PolyAS Waterproofing System

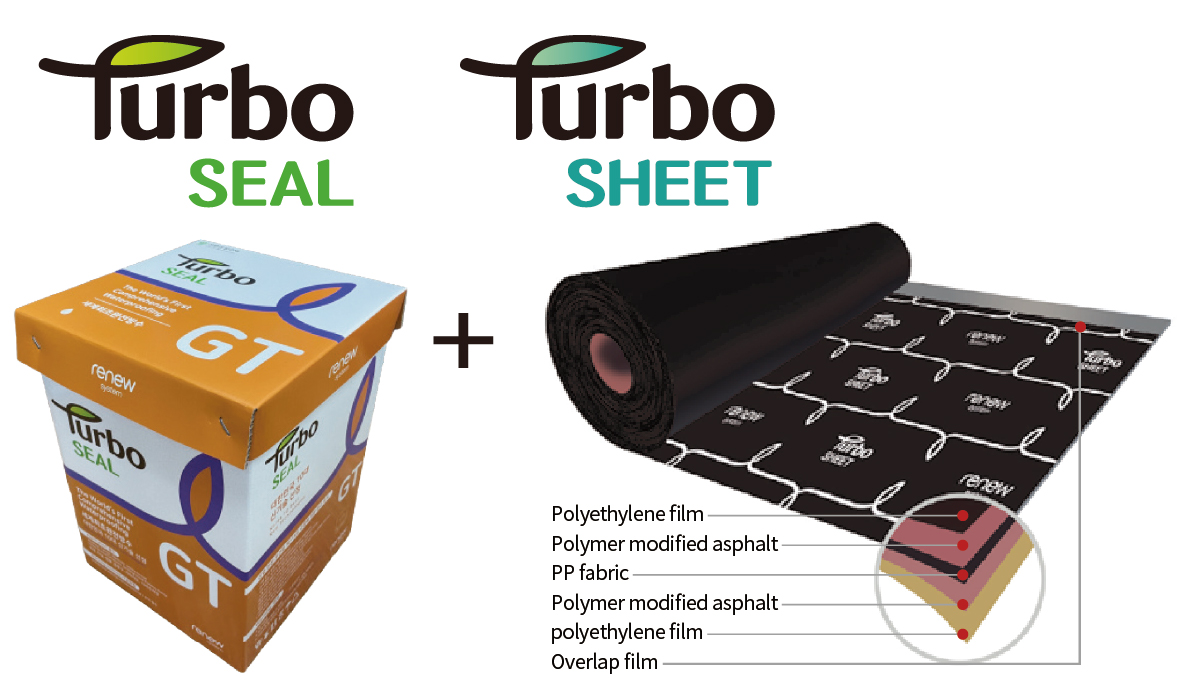

An integrated waterproofing system combining TurboSeal and TurboSheet to provide strong adhesion and accommodate structural movement.
A composite waterproofing system combining high-adhesion, flexible TurboSeal with TurboSheet to provide continuous waterproofing performance while accommodating structural movement and cracking.
New Construction Technology No. 376
Patent No. 10-101333
A composite waterproofing system combining high-adhesion, flexible TurboSeal with TurboSheet to provide continuous waterproofing performance while accommodating structural movement and cracking.
New Construction Technology No. 376
Patent No. 10-101333
Features
- No laitance removal required
- Applicable to wet substrates
- Suitable for application in low-temperature conditions, including winter
- Self-adhesive — no primer required
- No curing time required, allowing immediate subsequent work
Adhesive
Self-adhesive
Behavioral responsiveness
Non-Exposed Waterproofing System
Seamless waterproofing system
▶ Blocks potential leakage paths at the source
Exposed Waterproofing System
Seamless waterproofing system
▶ Prevents water leakage through a continuous waterproofing layer
UV-resistant protective finish
▶ Provides long-term durability and maintains appearance
Civil engineering
STEP 1
Surface preparation
STEP 2
Turbo Seal coating
STEP 3
Turbo Sheet installation
STEP 4
Installation of protective materials
Construction detail drawing
BOX TYPE
U-TYPE

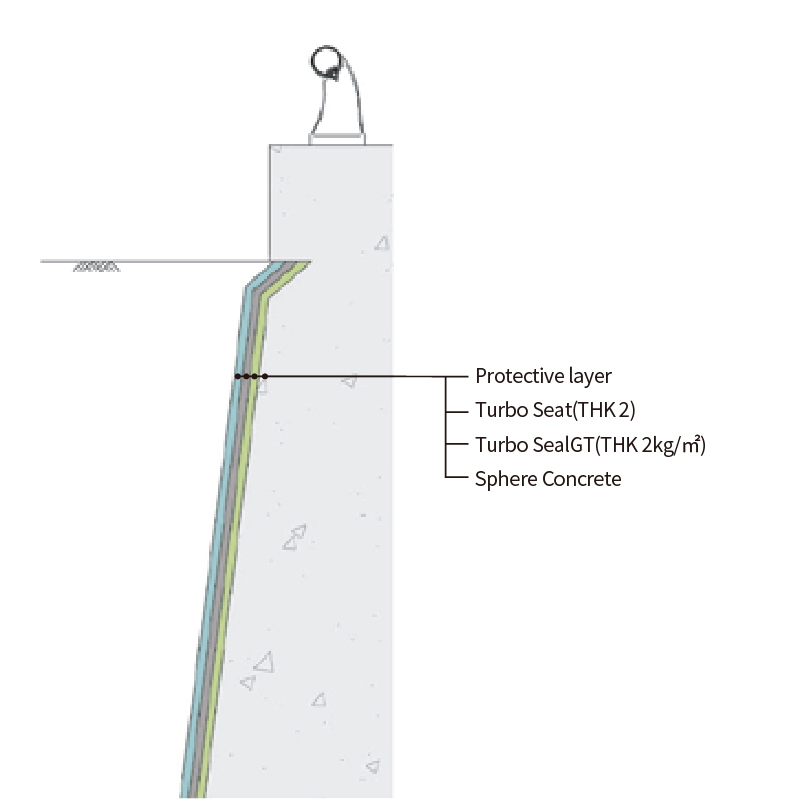

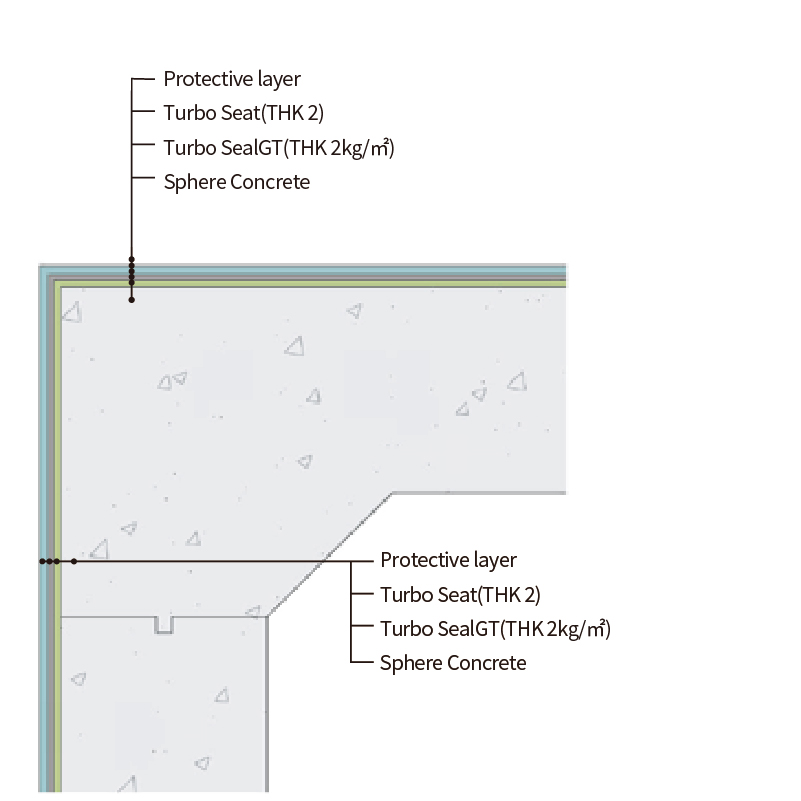

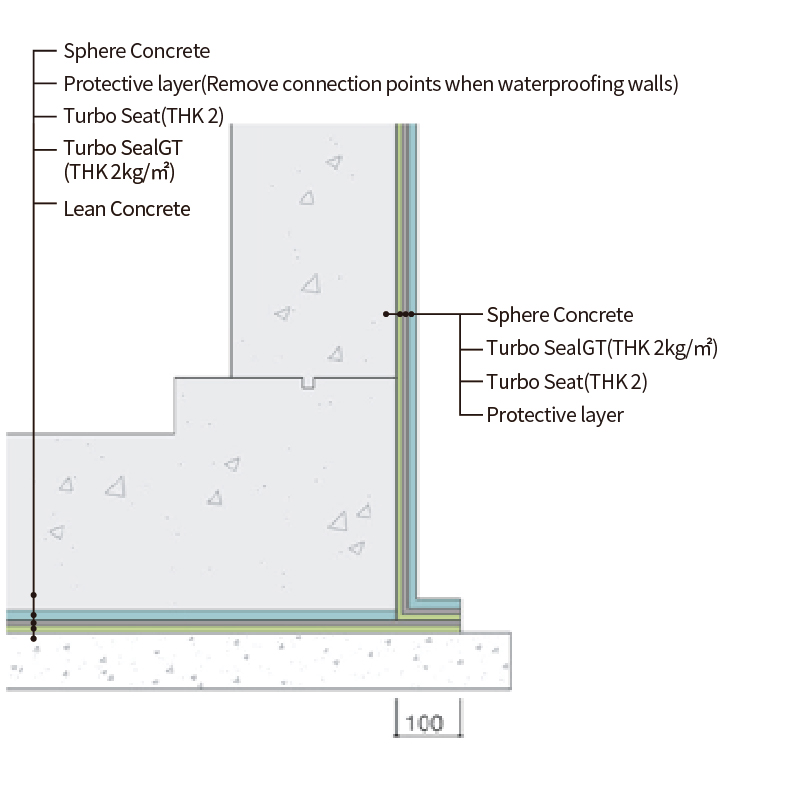

Details "A"
Details "B"
Details "C"

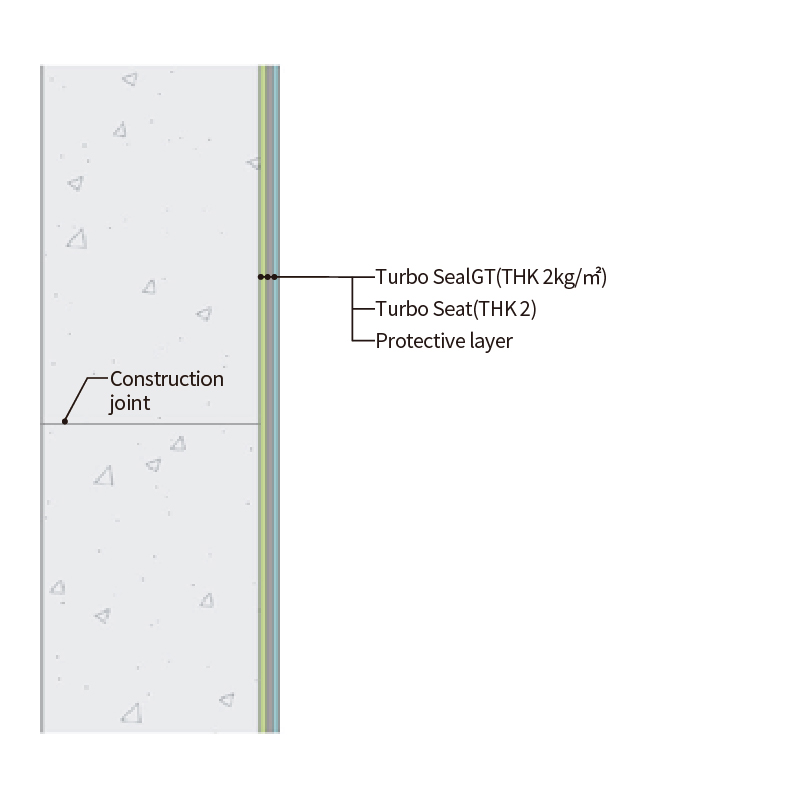

Construction Joint (C/J) Wall

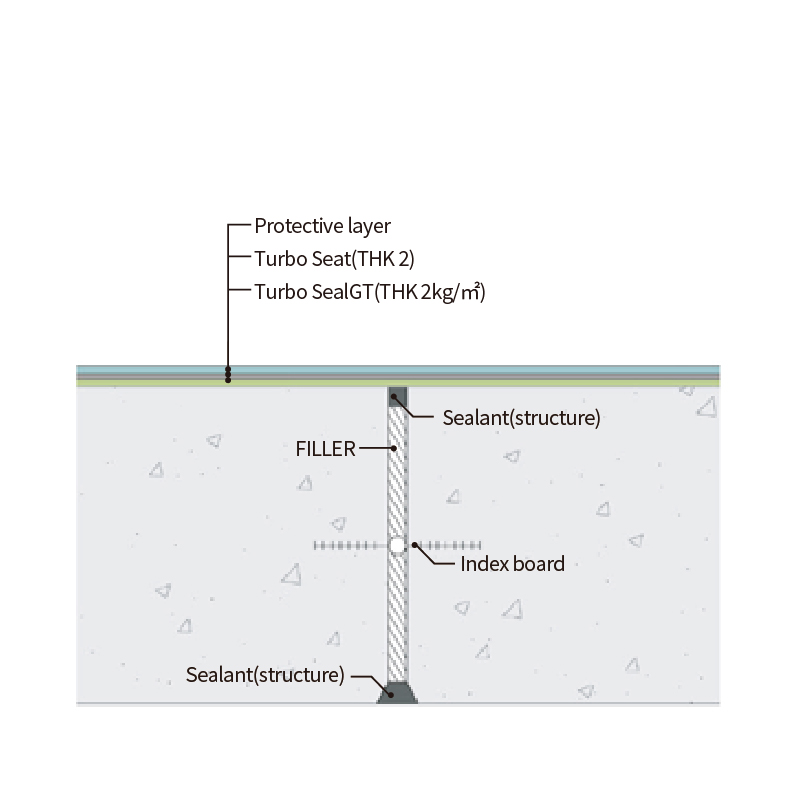

Upper part of expansion joint (E/J), wall

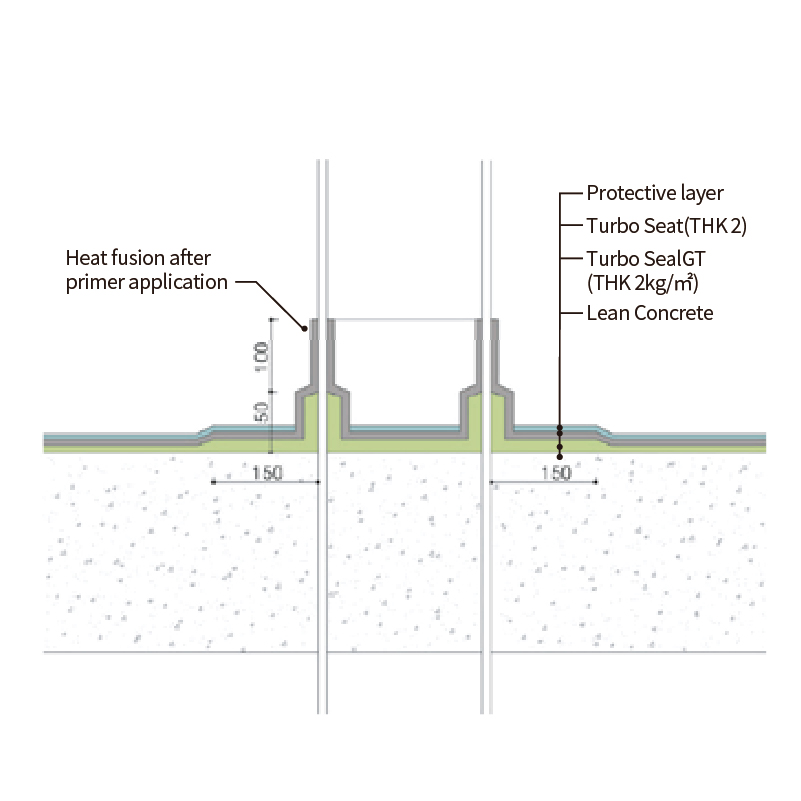

Central File (H-BEAM) Details
Architecture [Exposure]
STEP 1
Surface preparation
STEP 2
Turbo Seal coating
STEP 3
Turbo Sheet installation
STEP 4
Exposed sheet installation
Construction detail drawing
Rooftop Corner Detail 1 (with waterproof sill)

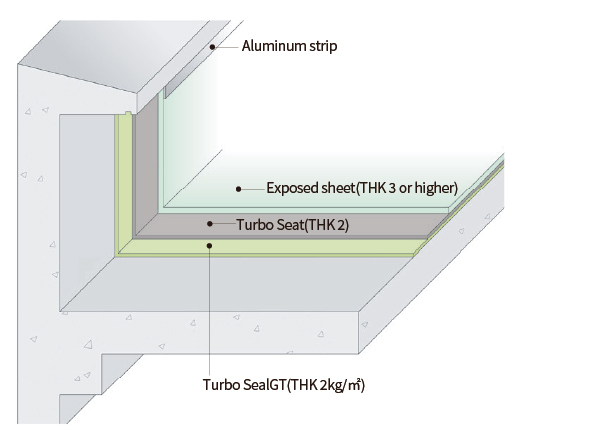

Rooftop Corner Detail 2 (No Waterproofing Sill)

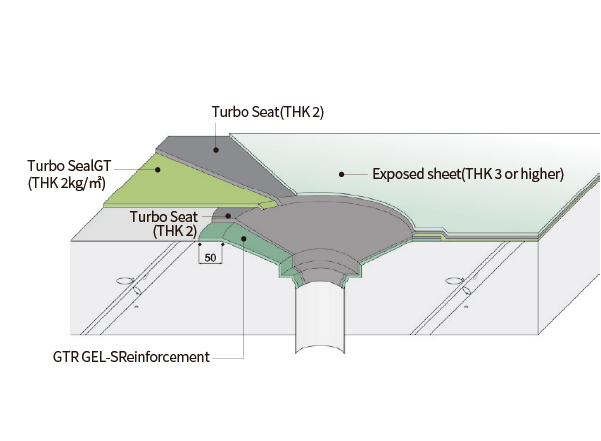

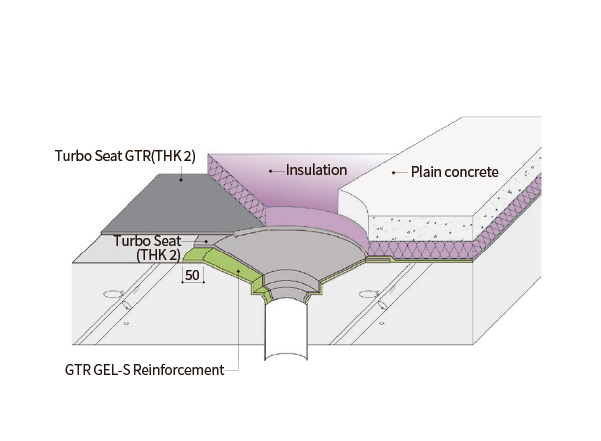

Drain detail
Civil engineering and buildings
Incheon Airport
Underpass
Tunnel
Common utility tunnel
subway
Water treatment facilities
Architecture [Non-exposed]
STEP 1
Surface preparation
STEP 2
Turbo Seal coating
STEP 3
Turbo Sheet installation
STEP 4
Construction completed
Construction detail drawing

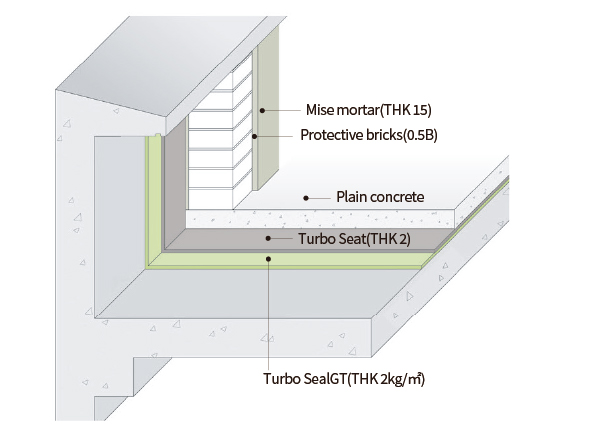

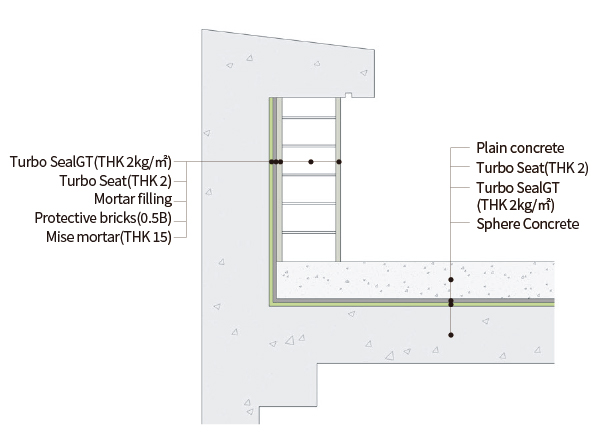

Rooftop Corner Detail 1
Rooftop Corner Detail 2
Drain detail
Architectural structures
Building basement exterior waterproofing
Public facility rooftop (repair)
Public facility rooftop (newly installed)
Apartment parking lot
School rooftop (repair)
School rooftop (newly built)
※ The above construction drawings are subject to change depending on site conditions.
