Excellent Procurement Product No. 2024138
New Disaster Safety Technology No. 2024-14
Patent 10-2551933
Turbo Seat GTR3000
Designated as an excellent product
by the Public Procurement Service
by the Public Procurement Service
Turbo Seat GTR3000
Designated as an excellent product by the Public Procurement Service
Excellent Procurement Product No. 2024138
New Disaster Safety Technology No. 2024-14
Patent 10-2551933
LH Apartment Basement Exterior Waterproofing Standard Product
resource-recycling composite waterproofing sheet
Turbo Sheet GTR3000
Turbo Sheet GTR3000

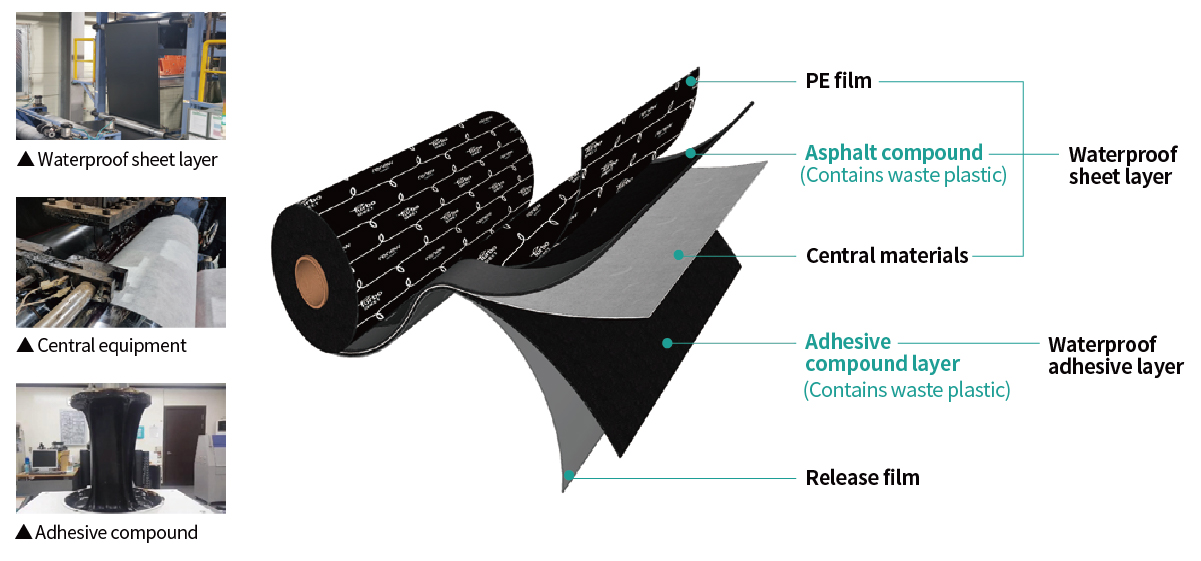

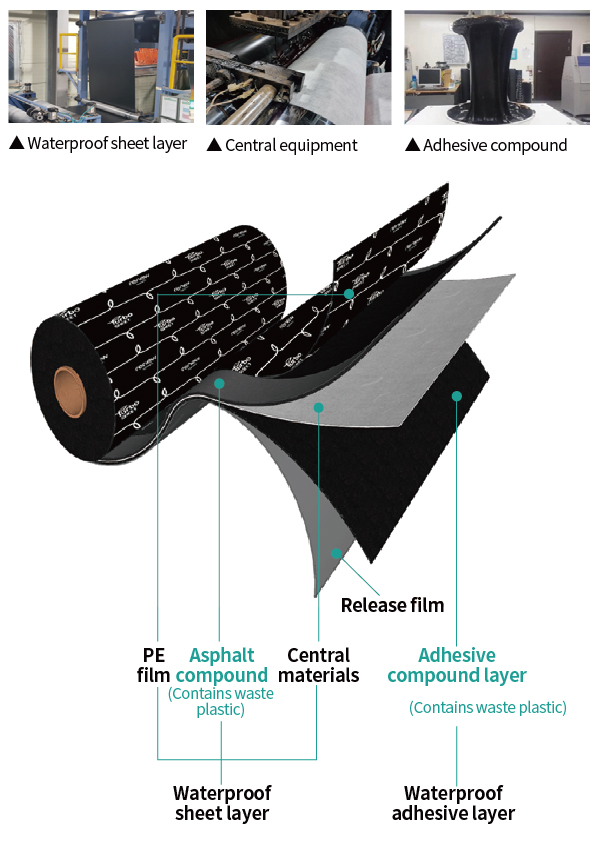

By combining a copolymerized adhesive gel made from waste plastic and an adhesive sheet into one, the waterproof performance of TurboSeal is maintained, while the convenience of the composite sheet is doubled.
By combining a copolymerized adhesive gel made from waste plastic and an adhesive sheet into one, the waterproof performance of TurboSeal is maintained, while the convenience of the composite sheet is doubled.
Registered as an excellent product by the Public Procurement Service, making it available for purchase without competitive bidding.
Features (Patent No. 10-2551933)
- Contains adhesive material with high tackiness and flexibility, preventing lifting even on irregular or wet/underwater surfaces
- High flexibility regarding structural behavior ensures no issues such as cracking or sagging of the waterproofing layer, or reduction in tensile strength or elongation
- Shortening construction time and reducing construction budget by eliminating processes such as heat fusion during waterproofing sheet bonding
- A resource-recycling product suitable for the ESG era
1. Easy installation
2. Shortening of construction period
3. Construction cost reduction

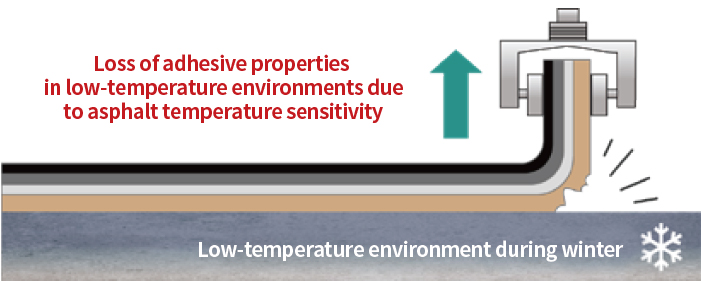

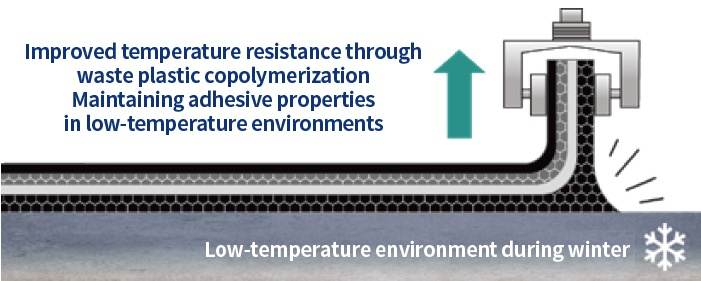

High adhesion
Existing technology
GTR3000
“Effect of manifesting adhesive and sealing properties in low-temperature winter environments through improved temperature resistance”

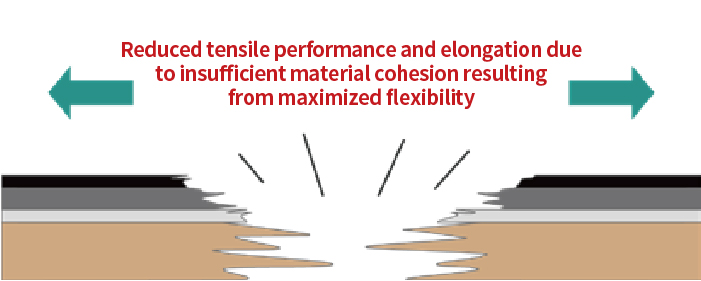

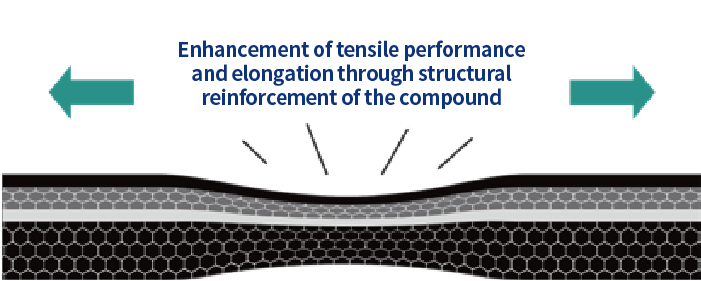

pliability
Existing technology
GTR3000
“Due to the high flexibility of the structural behavior, problems such as cracking or sagging of the waterproofing layer do not occur.”

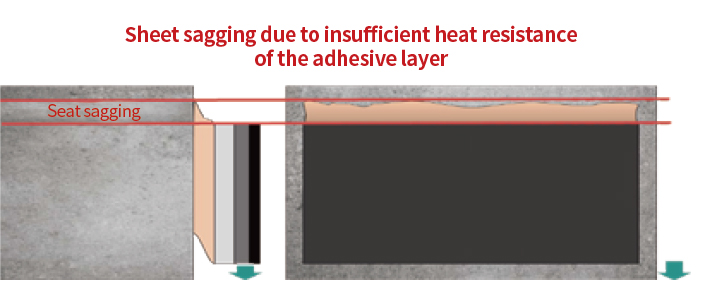

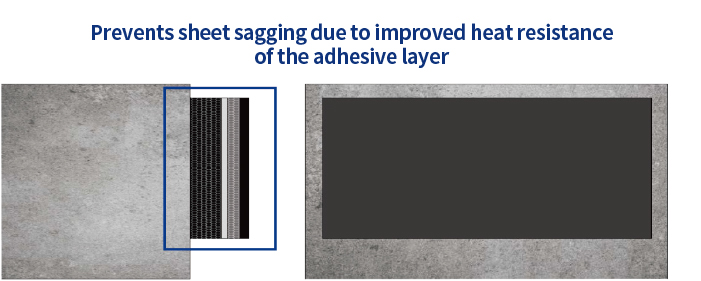

Deflection resistance
Existing technology
GTR3000
“Securing sagging resistance through improved heat resistance. Antioxidant properties due to a composite structure in which a waterproof sheet layer is formed on the upper surface of the adhesive layer.”
Promotion of sustainable upcycling technology through waste plastic recycling technology
(Implementation of mandatory recycled plastic use by 2030)
(Implementation of mandatory recycled plastic use by 2030)
Promotion of sustainable upcycling technology through waste plastic recycling technology(Implementation of mandatory recycled plastic use by 2030)
Social problems arising from the generation of waste plastic
“ Environmental pollution / Treatment costs / Liability, etc. “
Eco-friendly certification
Benefits of using eco-friendly products in local and government-operated systems
Local governments nationwide, including Seoul, are prioritizing the purchase of products with the Environmental Mark through the establishment of green purchasing standards and construction specifications.
Local governments nationwide, including Seoul, are prioritizing the purchase of products with the Environmental Mark through the establishment of green purchasing standards and construction specifications.
Mandatory purchase by public institutions
※ Basis: Article 6 of the Act on Promotion of Green Product Purchase
- Public institutions are required to purchase eco-friendly products, such as those with an environmental mark, if available for the items they intend to purchase
- However, exceptions are recognized in unavoidable cases, such as significant quality degradation, supply instability, fulfillment of other priority purchases, or meeting urgent needs
Turbo Seat GTR3000 Procurement Quality Standards
Turbo Seat GTR3000 Procurement Quality Standards
| Category | Test items | unit | Quality standards | Test method | ||
|---|---|---|---|---|---|---|
| Receiving sheet layer | Tensile performance | Tensile strength | N/mm | 7.8 or higher | KS F 4917 | |
| Growth rate | % | 29 or higher | ||||
| Heat resistance | The path of the flowing down | mm | 3 or less | |||
| Appearance | - | It will not drip or foam | ||||
| Bonding performance | N/mm | 4.5 or higher | ||||
| Flexural performance | Unprocessed(-10℃) | surface side | - | No cracks will form at -10℃ | ||
| The other side | ||||||
| After heating(5℃) | surface side | - | No cracks will form at 5℃ | |||
| The other side | ||||||
| Adhesive layer | Wet surface adhesion performance | - | The bottom plate of the test specimen will not detach within 60 seconds. | KS F 4935 | ||
| Structural behavior response performance | - | I won't become a pitcher | ||||
| Chemical resistance | hydrochloric acid treatment | % | The rate of change in mass is within -0.07. | |||
| nitric acid treatment | ||||||
| sulfuric acid treatment | ||||||
| Sodium chloride treatment | ||||||
| Alkali treatment | ||||||
Architecture [Exposure]
Turbo Seat GTR3000 Exp [Exposure]
STEP 1
Surface preparation
STEP 2
Turbo Seat GTR3000 Installation
STEP 3
Construction of protective layer
Construction detail drawing

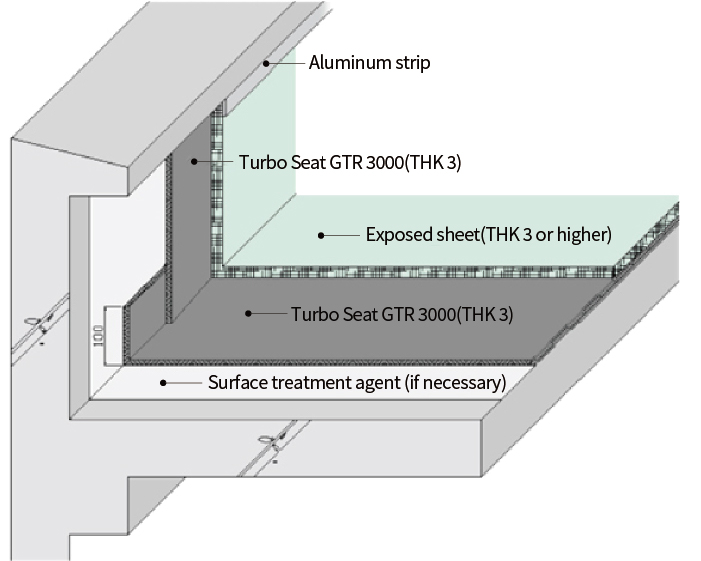

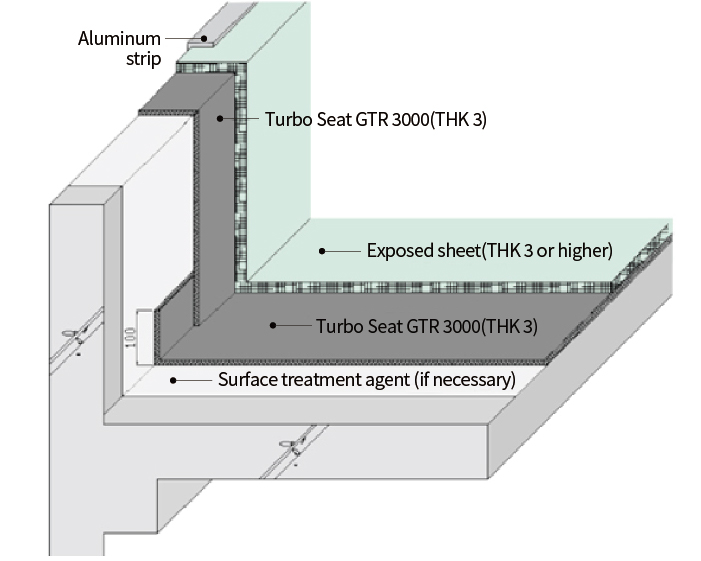

Rooftop Corner Construction Drawing 1 / With Waterproofing Curb [Exposed]
Rooftop Corner Construction Drawing 1 / With Waterproofing Curb [Exposed]

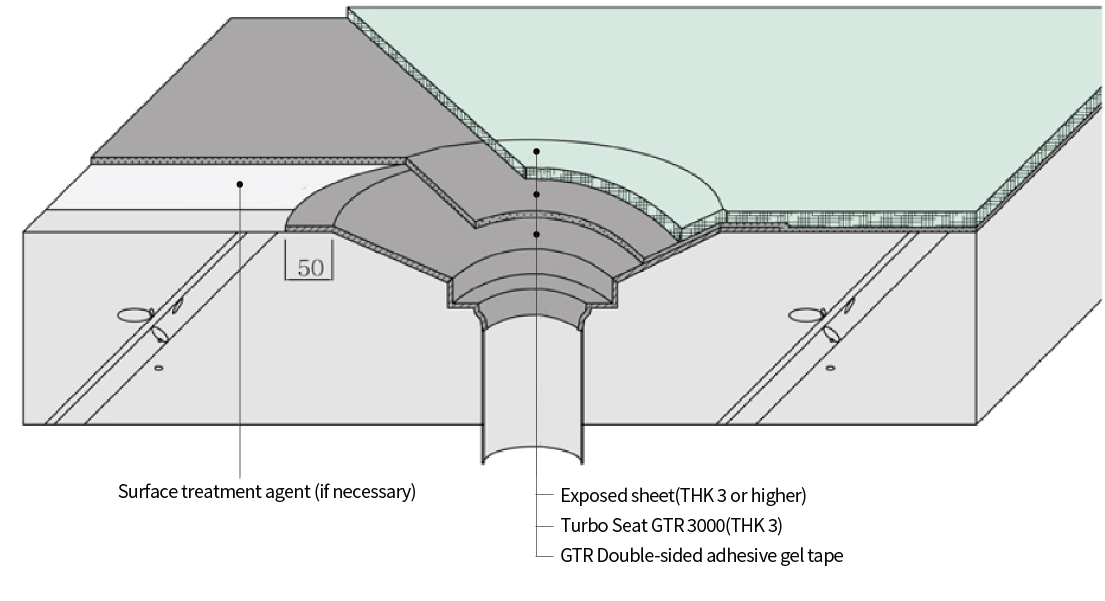

Drain installation [exposed]
Architecture [Non-exposed]
Turbo Seat GTR3000 N-Exp [Non-exposed]
STEP 1
Surface preparation
STEP 2
Turbo Seat GTR3000 Installation
Construction detail drawing

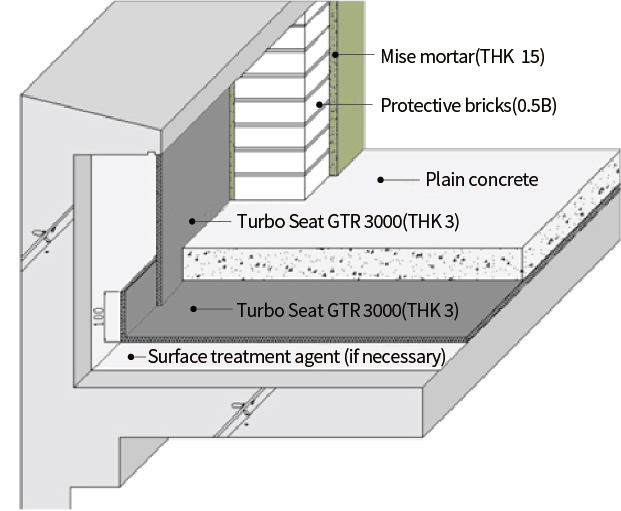

Rooftop General Area Construction Drawing [Non-exposed]

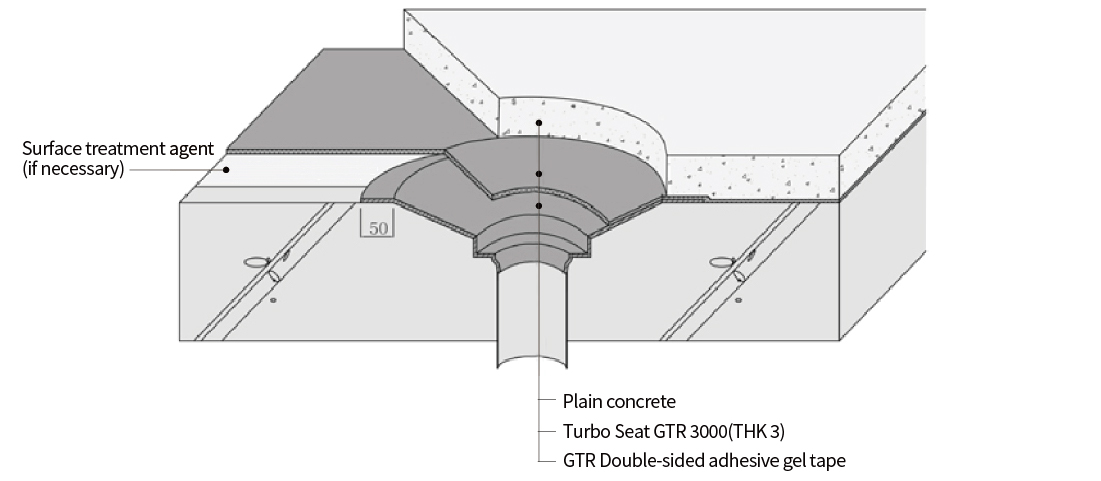

Rooftop Drain Area Construction Drawing [Non-exposed]
- If battens are to be installed, they shall be calculated separately, and suitable materials shall be used according to site conditions.
- If surface treatment is required, leveling mortar and corner reinforcement materials shall be calculated separately.
- The unit price and unit cost of walls shall be applied to reinforced areas.
- The protective layer shall be calculated separately.
Civil engineering (underpasses, tunnels, subways, box structures, utility tunnels, power conduits, etc.)
Civil engineering
(underpasses, tunnels, subways, box structures, utility tunnels, power conduits, etc.)
(underpasses, tunnels, subways, box structures, utility tunnels, power conduits, etc.)
Wall
STEP 1
Surface preparation
STEP 2
Turbo Seat GTR3000 Installation
STEP 3
Construction of protective layer
Upper
STEP 1
Surface preparation
STEP 2
Turbo Seat GTR3000 Installation
STEP 3
Construction of protective layer
Construction detail drawing

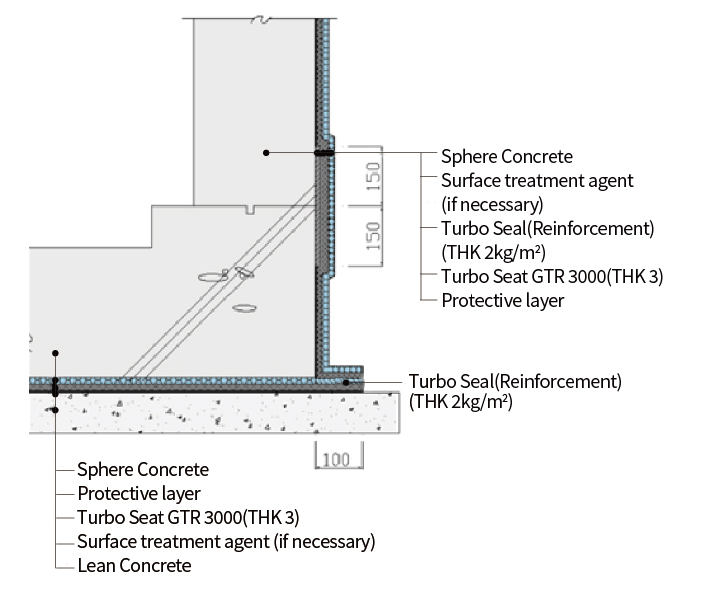

Wall construction drawing
Construction drawing of the upper slab wall section
※ The above construction drawings are subject to change depending on site conditions.
